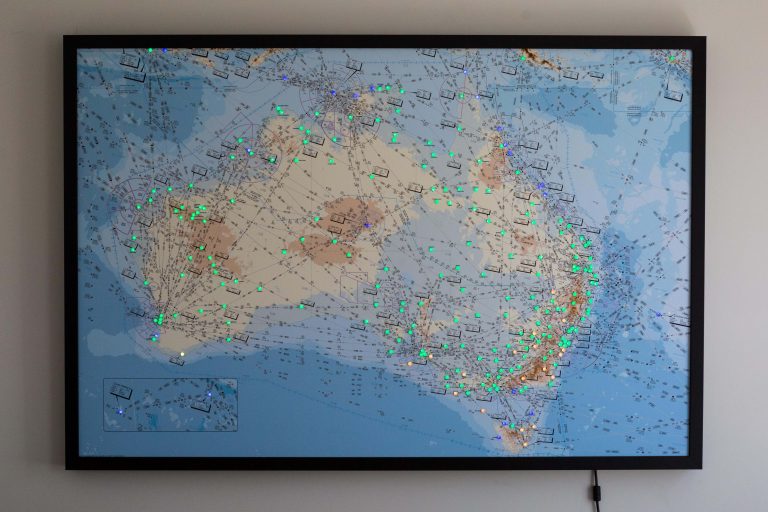

This is a full METAR map of Australia with LED’s representing METAR’s all over the country/region.
The printed map is 1410mm x 944mm. When framed the total size is 1460mm x 994mm
There are 3 map styles to choose from.
Terrain Only: Terrain data is shown in the same colour scheme as the Australian VNC hypsometric tint.
Terrain and Bathymetry: This style is the same as the Terrain Only style but adds Bathymetric data for underwater ocean depths.
3D Terrain and Bathymetry: This style is the same as the Terrain and Bathymetry style but adds a hillshade which creates a 3D effect bringing a lot more detail to the mountain ranges and underwater features.
All styles have the Australian Enroute Hi charts overlaid on top of the terrain.
SRTM data is at a resolution of 1 arcsec which equates to around 30m per pixel and GEBCO is at a resolution of 15 arcsec which is about 450m per pixel.
Each map also includes an inset of Cocos Keeling Island and Christmas Island.
An LED light legend is also included by default but can be removed if requested.
🟢 >8km or >3000ft ceiling
🔵 >5km or >1000ft ceiling
🟡 >1.6km or >500ft ceiling
🔴 <1.6km or <500ft ceiling
🟠 Winds/Gusts <25kts
🟣 Lightning in vicinity
As each METAR map of Australia is custom made to order, there are many options available including colour scheme changes. Just ask and I will endeavour to make whatever you want happen.
For a smaller East coast version of this map go here
